Adjustable Profiling
Develop the roast approach that suits the coffee and customer experience.

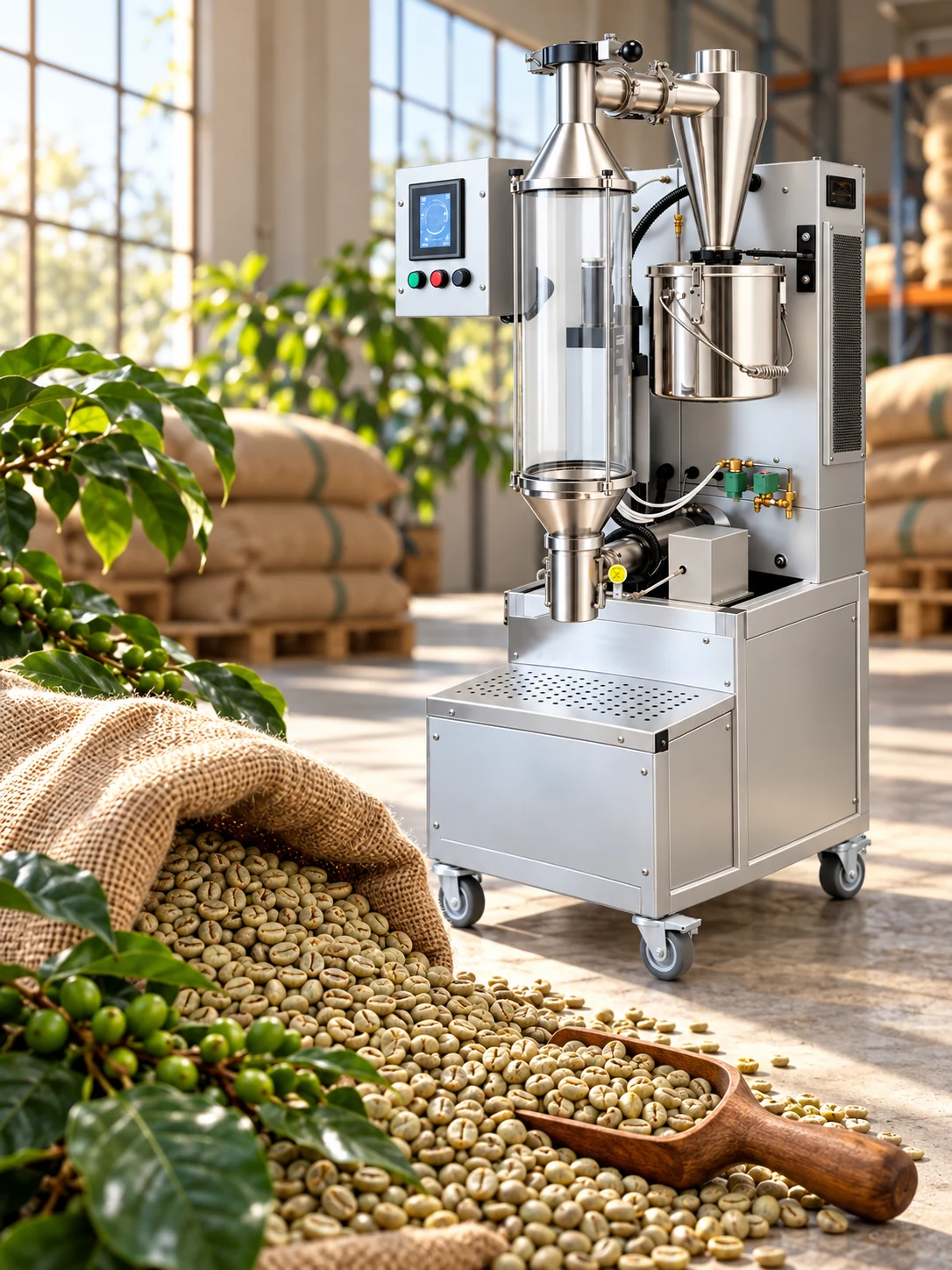

Commercial Fluid-Bed Air Roaster
Coffee Roaster Model Profect 4.0 6.8 lbs Nominal Capacity!
Precision coffee roasting with operator-adjustable profiling and multiple roasting modes, built for consistent, low-odor batches up to 6.8 lbs.
Starting at
$39,995
Convenient leasing programs available
- 6.8 lbs nominal capacity per batch
- Lifetime craftsmanship warranty*
- Operator interface with adjustable profiling
Control the Profile
A Roasting Platform Built for Intentional Growth
The Profect 4.0 gives operators control over profiles and selectable modes in a durable commercial build.
6.8 lb Nominal
A larger published batch size for businesses with growing coffee volume.
Exhaust Control
Published features include odor reduction and particulate control with selectable steam injection.
Engineering Specifications
Confirm the Site Before Delivery
The Profect has distinct three-phase power, water and ventilation needs. Engage qualified trades during planning.
Footprint
- Weight:
- 250 lb.
- Dimensions:
- 19″ W × 69″ H × 34″ D
- Casters:
- 2 locking, 2 swivel
- Clearance:
- 6″ recommended on all sides
- Nominal capacity:
- 6.8 lb
Materials & Finishes
- Construction:
- Anodized aluminum and painted steel
- Roasting Chamber:
- 20″ lighted glass
Capacity & Features
- Nominal Capacity:
- 6.8 lbs
- Profiling:
- Operator adjustable
- Roasting Modes:
- Multiple selectable modes
- Emissions Control:
- Odor reduction exhaust particulate control with selectable steam injections
Facility Requirements
- Power:
- 125/208V, 3-phase with Neutral & Ground, 12.5 KW maximum load
- Cord:
- 10-5 SO cord, 10 ft. length
- Receptacle:
- Hubbell 8461 plug, 60A, 3-phase, 250V, 3P-5W
- Water:
- 1/4″ flexible hose with shut-off valve; replaceable-cartridge filter; no backflow preventor or drain required
- Ventilation:
- 12″ diameter hood on 8″ galvanized vertical vent pipe; 350–400 CFM updraft blower recommended (Dayton – Grainger PN 7DF67); install hood 3–5″ above roaster cyclone exhaust
- Exhaust Control:
- Current Sensor Control required to power exhaust blower externally (recommended: SSAC-ECS41BC – Grainger PN 6C055)
- Certifications:
- ETL Listed: UL-197, CSA C22.2 STD 109
Experience the Profect 4.0
Ready to Bring the Profect 4.0 Home?
Schedule a personalized live demonstration, explore custom leasing options, and speak directly with our coffee roasting engineers.
